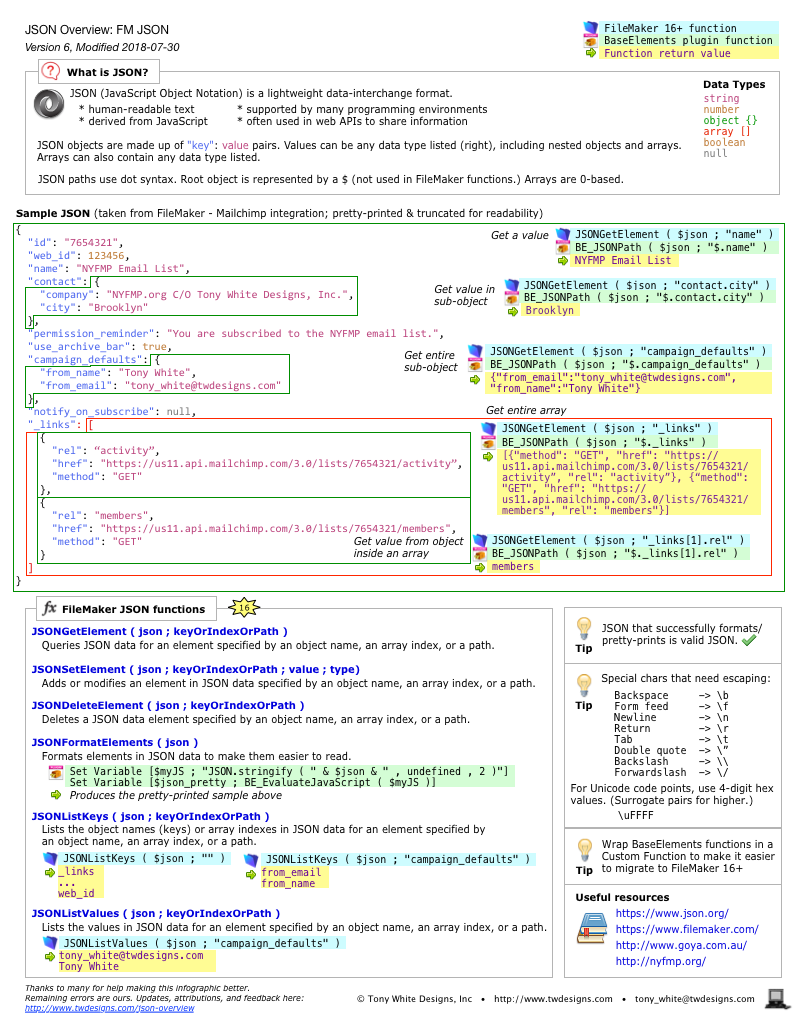

JSON Overview JSON Overview
Progression

FileMaker 16 Card Windows FileMaker 16 Card Windows
Progression

iBeacons and FileMaker Go 15 iBeacons and FileMaker Go 15
Progression

FileMaker 14 Code Objects as ERD FileMaker 14 Code Objects as ERD
Progression

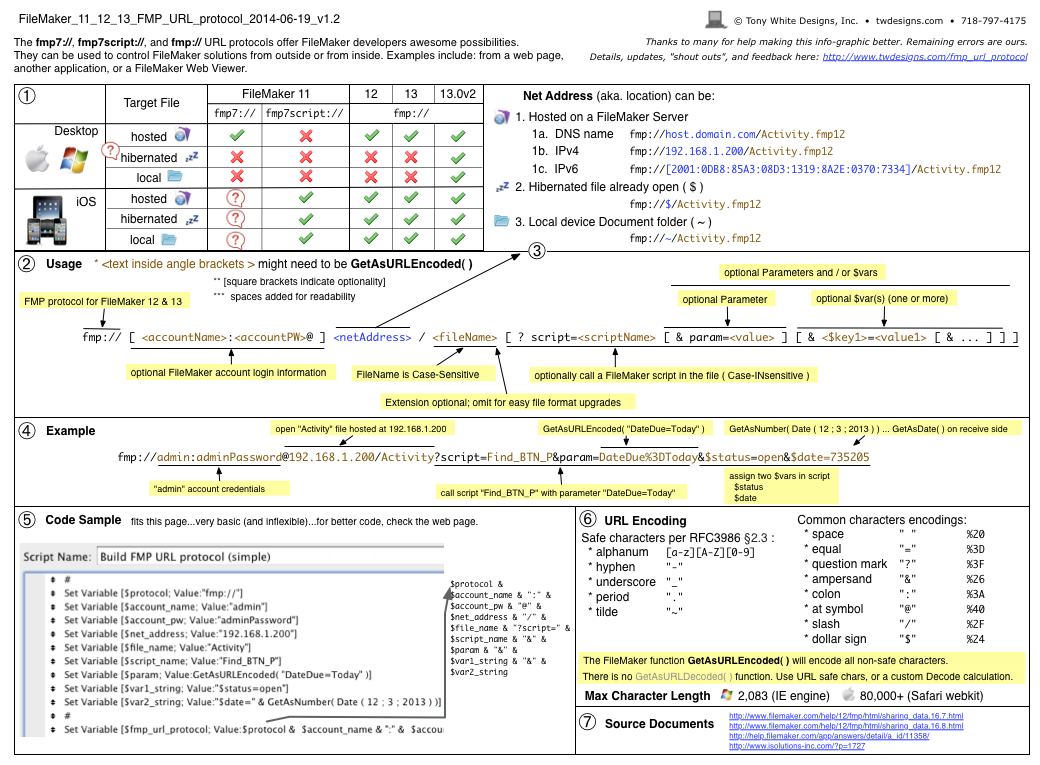

FMP URL protocol FMP URL protocol
Progression

FileMaker 15 Script Trigger Compatibility

This FileMaker platform training document:

  • Is a simple, colorful, easy to read list of all the script triggers in FileMaker 15
  • Includes all the FileMaker 15 platform Compatibility categories: Mac = Macintosh ; Win = Windows ; FMS = Server ; iOS ; CWP = Custom Web Publishing ; WD = FileMaker WebDirect ; Run = Runtime
  • Includes the Type and the version of FileMaker where the script trigger was Introduced
  • Uses custom “header-data” points to provide a “scroll safe” user experience
  • Links to the source documents from FileMaker, Inc.
  • Is sortable...click on the column headers to sort
  • Pairs well with FileMaker 15 Functions, FileMaker 15 Script Step Compatibility, and BaseElements Plugin Functions

This training document is made using simple HTML generated from a FileMaker database.

Legend:
Green = Compatible
Red = Not Compatible
Yellow = Partial Compatibility
Purple = Question

Code Script Trigger When M W S i C WD R Type Intro
fwo OnFirstWindowOpen Post Mac Win FMS iOS CWP WD Run File 6.0
wo OnWindowOpen Post Mac Win FMS iOS CWP WD Run File 12
favc OnFileAVPlayerChange Post iOS File 14
ecr OnExternalCommandReceived Post iOS File 14
wc OnWindowClose Pre Mac Win FMS iOS CWP WD Run File 12
lwc OnLastWindowClose Pre Mac Win FMS iOS CWP WD Run File 6.0
le OnLayoutEnter Post Mac Win FMS iOS CWP WD Run Layout 10
me OnModeEnter Post Mac Win FMS iOS CWP WD Run Layout 10
rl OnRecordLoad Post Mac Win FMS iOS CWP WD Run Layout 10
lsc OnLayoutSizeChange Post Mac Win iOS WD Run Layout 13
lk OnLayoutKeystroke Pre Mac Win iOS Run Layout 10
gt OnGestureTap Pre Mac Win iOS Run Layout 13
rc OnRecordCommit Pre Mac Win FMS iOS CWP WD Run Layout 10
vc OnViewChange Post Mac Win FMS iOS CWP WD Run Layout 11
mx OnModeExit Pre Mac Win FMS iOS CWP WD Run Layout 10
lx OnLayoutExit Pre Mac Win FMS iOS CWP WD Run Layout 11
rr OnRecordRevert Pre Mac Win FMS iOS CWP WD Run Layout 10
oe OnObjectEnter Post Mac Win FMS iOS CWP WD Run Layout object 10
ok OnObjectKeystroke Pre Mac Win iOS Run Layout object 10
oavc OnObjectAVPlayerChange Post iOS Layout object 14
ps OnPanelSwitch Pre Mac Win FMS iOS CWP WD Run Layout object 12
om OnObjectModify Post Mac Win FMS iOS CWP WD Run Layout object 10
ov OnObjectValidate Pre Mac Win FMS iOS CWP WD Run Layout object 11
os OnObjectSave Post Mac Win FMS iOS CWP WD Run Layout object 10
ox OnObjectExit Pre Mac Win FMS iOS CWP WD Run Layout object 10
ots Install OnTimer ScriptStep NA Mac Win iOS WD Run Timer 10

This evolving document was built on information from the community and made better by contributions from many. Free to give us feedback here.

Some useful links:

Thanks to all those who helped make this document better. Remaining errors are ours. Here are some of the people who shared useful suggestions (listed alphabetically):

  • Name, Org. (edit)

If you have any questions, please feel free to contact us.

Thanks.
