FileMaker Relationship Graph Standards

A few points to consider...

• Using Anchor-Buoy
• Striving towards good names for code objects

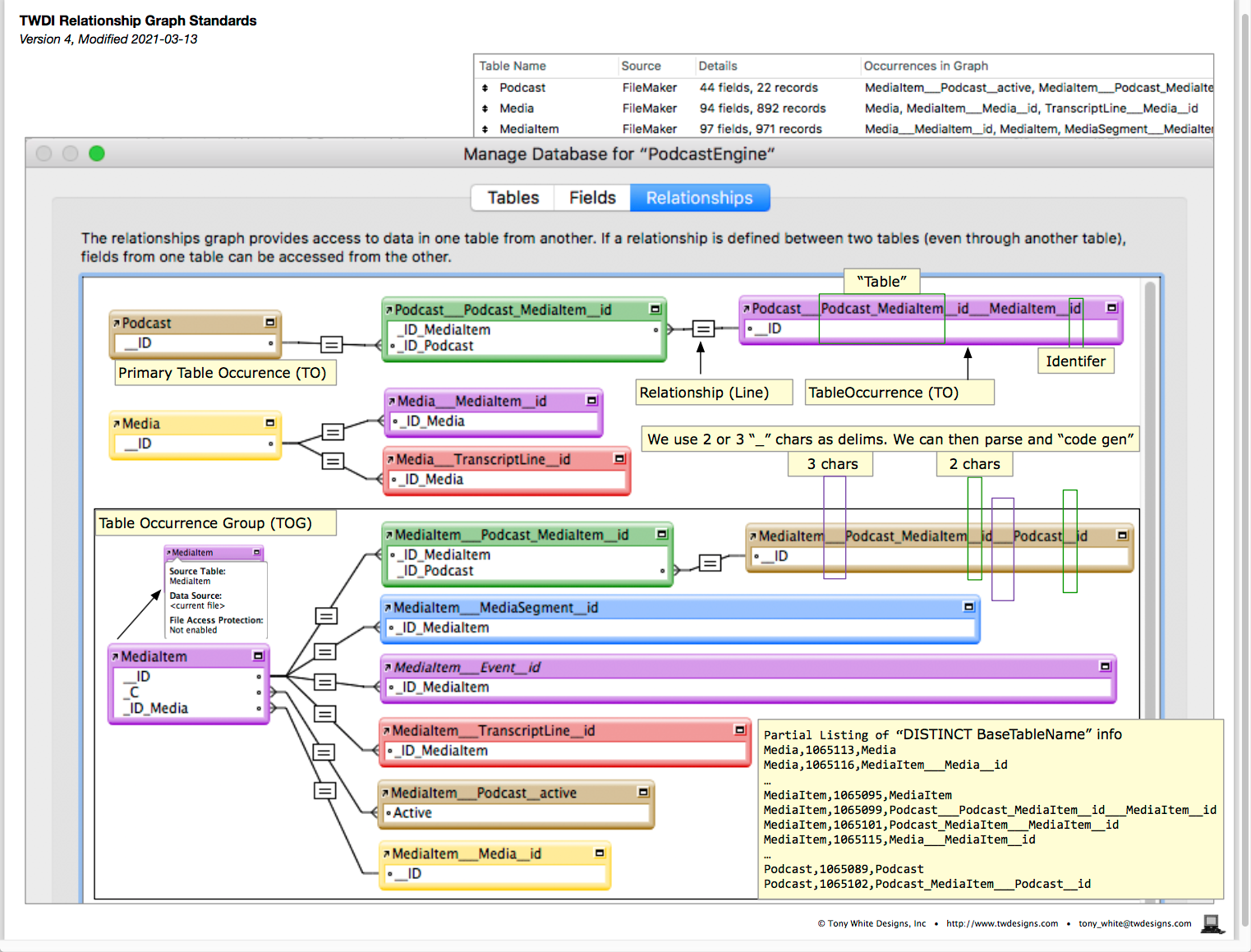

• Shows Primary Table Occurrences (PTOs)
• Shows a Table Occurrence Group (TOG)
• Naming conventions facilitate code generation possibilities
• Colors are useful

PDF version

This infographic is an evolving document built on information from the community and made better by contributions from many. Free to give us feedback in the comments section here.
